The effect of terbuthylazin on growth rate
terbuthylazin.RdTest on the effect of terbuthylazin on Lemna minor, performed on an aseptic culture according to the OECD-guidelines.
Usage
data(terbuthylazin)Format
A data frame with 30 observations on the following 2 variables.
- dose
a numeric vector of dose values.
- rgr
a numeric vector of relative growth rates.
Examples
library(drc)
## displaying first 6 rows of the data set
head(terbuthylazin)
#> dose rgr
#> 1 0 0.3017731
#> 2 0 0.2760291
#> 3 0 0.3145257
#> 4 0 0.2663174
#> 5 0 0.2871303
#> 6 0 0.3805772
## Fitting log-logistic model
terbuthylazin.m1 <- drm(rgr~dose, data = terbuthylazin, fct = LL.4())
summary(terbuthylazin.m1)
#>
#> Model fitted: Log-logistic (ED50 as parameter) (4 parms)
#>
#> Parameter estimates:
#>
#> Estimate Std. Error t-value p-value
#> b:(Intercept) 1.2474e+00 2.3543e-01 5.2984 1.532e-05 ***
#> c:(Intercept) 8.0293e-04 2.4913e-02 0.0322 0.9745
#> d:(Intercept) 3.0695e-01 9.6088e-03 31.9441 < 2.2e-16 ***
#> e:(Intercept) 1.8914e+02 3.7726e+01 5.0136 3.242e-05 ***
#> ---
#> Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error:
#>
#> 0.02699266 (26 degrees of freedom)

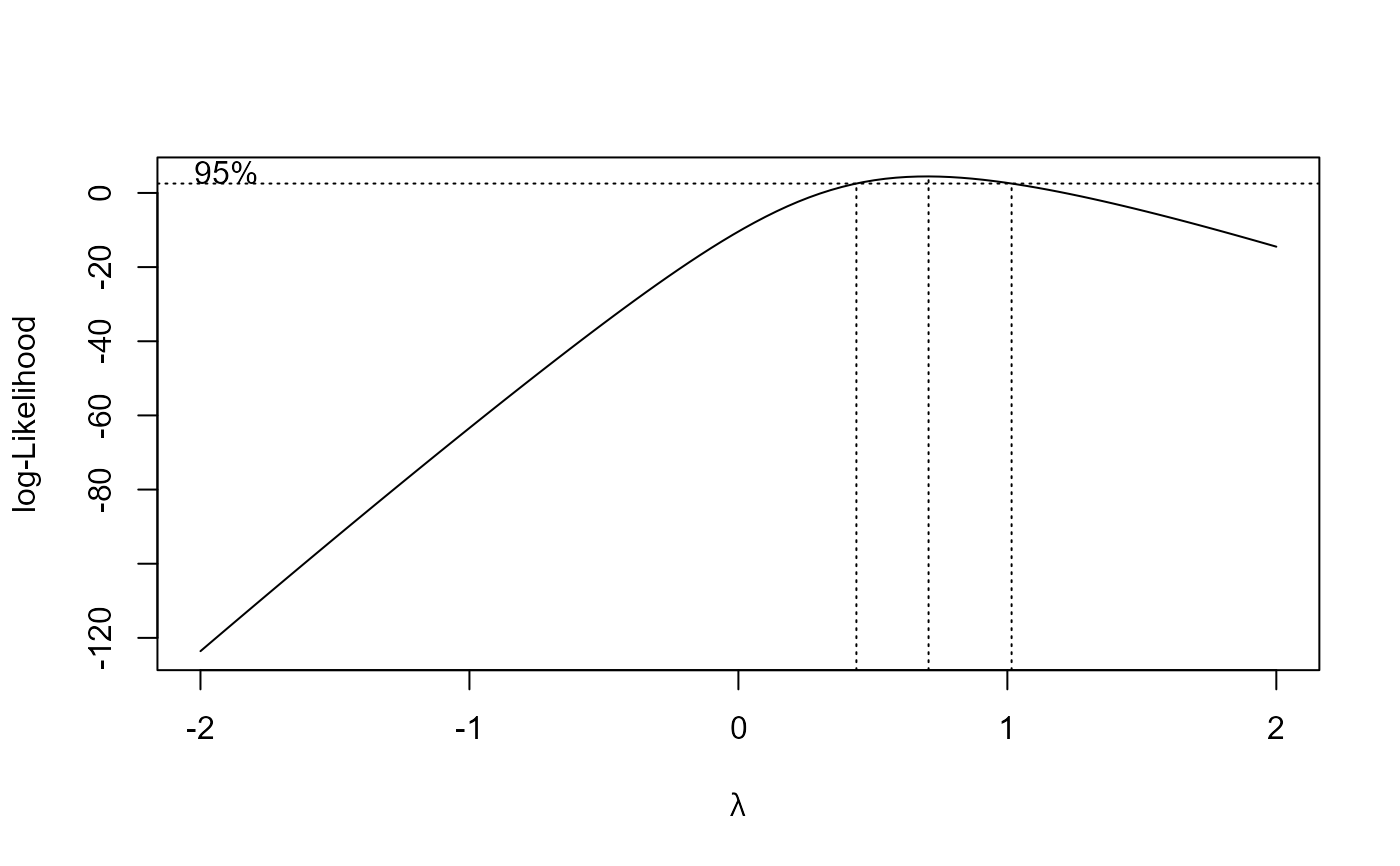

## Fitting log-logistic model
## with Box-Cox transformation
terbuthylazin.m2 <- boxcox(terbuthylazin.m1, method = "anova")
summary(terbuthylazin.m2)
#>
#> Model fitted: Log-logistic (ED50 as parameter) (4 parms)
#>
#> Parameter estimates:
#>
#> Estimate Std. Error t-value p-value
#> b:(Intercept) 1.3226e+00 2.3707e-01 5.5788 7.346e-06 ***
#> c:(Intercept) 5.6549e-03 1.5383e-02 0.3676 0.7161
#> d:(Intercept) 3.0520e-01 1.1147e-02 27.3785 < 2.2e-16 ***
#> e:(Intercept) 1.8290e+02 2.6858e+01 6.8098 3.153e-07 ***
#> ---
#> Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error:
#>
#> 0.04562085 (26 degrees of freedom)
#>
#> Non-normality/heterogeneity adjustment through Box-Cox transformation
#>
#> Estimated lambda: 0.707
#> Confidence interval for lambda: [0.439,1.016]
#>
